No. |
Item Name |
unit |
WSM988T48 |
|
|
1 |
|
|
mm |
11200 |
|
|
The Whole machine size |
Length(fork on ground) |
|
|
|
2 |
|
width |
mm |
3640 |
|
3 |
|
height |
mm |
3700 |
|
4 |
|
Curb weight |
Kg |
51000 |
|
5 |
The whole specification |
Max traction force |
KN |
320 |
|
6 |
|
Fuel capacity |
L |
500 |
|
7 |
|
Hydraulic tank capacity |
L |
500 |
|
8 |
|
Axle base |
mm |
4850 |
|
9 |
|
Wheel track |
mm |
2880 |
|
10 |
|
Min turning Radius |
mm |
9500 |
|
11 |
|
Gradeability (no-load/Full load) |
% |
30/14 |
|
12 |
|
Min.ground clearance |
mm |
460 |
|
13 |
Working device geometry parameters |
Max.Lifting height |
mm |
3200 |
|
14 |
|
Fork standard size |
mm |
1600*300*155 |
|
15 |
work capacity |
Load center distance |
mm |
1000 |
|
16 |
|
Rated Load capacity |
Kg |
48000 |
|
17 |
|
Max lift capacity |
kg |
53500（H：1.6m） |
|
18 |
|
Rated power/roating speed |
Kw/rpm |
247/2200 |
|
With the improvement of the new technology, the product structure and parameters will be continuously improved ,if the sample information is not in conformity with the physical object, pls refer to the object. |
||||
|
Productname： |
Diesel Forklift Loader,(WSM988T48) |
|
Product Number： |
|
|
Product Introduction： |
|
wheel loader WSM988T48 Product specification(Diesel forklift loader)

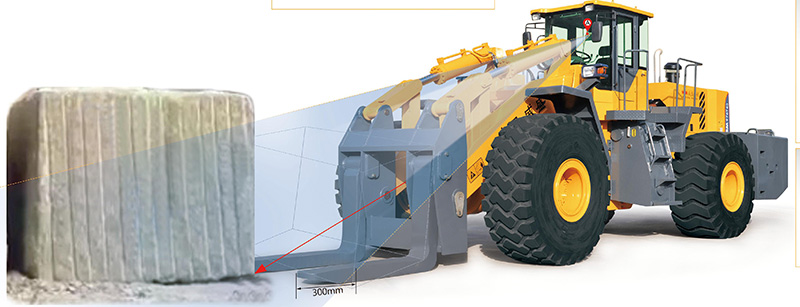

wheel loader WSM988T48 The driver A point is the height of 700mm away from the seat (normal sitting position). When the fork is horizontal, we can see the fork and fork tip fork into 300mm way.In the lifting process, the driver can see the tip and fork, it is safe to work. wheel loader WSM988T48
wheel loader WSM988T48 Standard configuration
