No.	Item  Name		unit	WSM955T18
1			mm	8270
	The Whole machine size	Length(fork on ground)
2		width	mm	3200
3		height	mm	3500
4	Working device geometry parameters	Curb weight	Kg	22000
5		Max traction force	KN	180
6		Fuel capacity	L	280
7		Hydraulic tank capacity	L	280
8		Axle base	mm	3550
9		Wheel track	mm	2550
10		Min turning Radius	mm	7220
11		Gradeability (no-load/Full load)	%	58/36
12			mm	520
		Min Ground Clearance
13		Max.Lifting height	mm	3450
14		Fork standard size	mm	1500×180×100
15	work capacity	Load center distance	mm	900
16		Rated Load  capacity	Kg	18000
				（H：1200mm）
17		Rated power/rotating speed	Kw/rpm	162/2200
With the improvement of the new technology, the product structure and parameters will be continuously improved ,if the sample information is not in conformity with the physical object,  pls refer to the object.

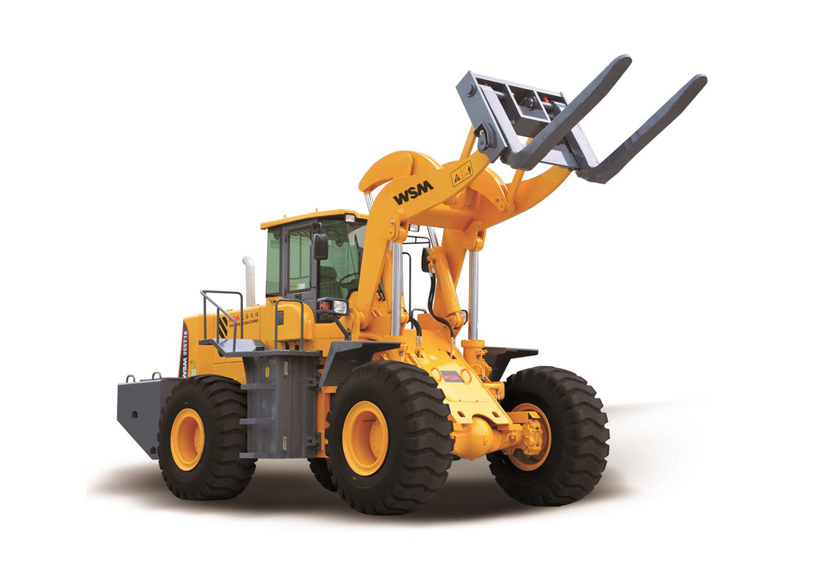

Productname：	Quarry Loader,(WSM955T18)
Product Number：
Product Introduction：

Wheel forklift loader WSM955T18 production specification(Quarry Loader)



1.Wheel forklift loader WSM955T18 Low oil consumption,high quality turbocharged engine,good dynamic performance and high torque reserve.

2.Wheel forklift loader WSM955T18 The structural parts are optimized by finite elements analysis, and the front & rear frame adopts plate structure with strong bearing capacity and high strength.

3.Wheel forklift loader WSM955T18 It is safer to use flame resistant material in the cab.

4.Wheel forklift loader WSM955T18 The cab with a large visual field, no blind area.

5.Wheel forklift loader WSM955T18 The outer eight type steering optimization mechanism,the turning radius is small, flexible,the independent steering pump is used, the hydraulic oil independently dissipates the heat, reduces the hydraulic oil temperature, and provides the working efficiency.

6.Double rocker structure, better operation field, easy operation,make sure the good excavation force.



7.Equipped with large diameter lifting cylinder, bucket cylinder, improve the lifting force and excavation force.

8.Bigger capacity torque converter, improve the matching performance of the engine, and make the whole machine have super traction.



9.Long wheelbase wheel forklift loader has the advantages of the large excavation force and large tipping load.



10.Modularization of the cooling system increases the heat dissipation area and optimizes the inlet and outlet wind design of the whole cooling system, effectively reducing and temperature of water temperature , transmission oil and hydraulic oil.



standard configuration



Engine: The China Steyr Tier2/3

Transmission: Single-stage four component double turbine hydrodynamic transmission assembly

Drive axle:  WSM heavy duty drive axle.

Heat dissipation system：new aluminum composite water tank，hydraulic oil radiator， torque converter oil radiator.

Attachment: forkl

The braking system： Gas cap oil caliper disc brake



Optional parts

l Tyre protection chain

l Quick exchanged or easy-exchange bucket

l  Air-conditional

l Cummins engine

l Distance fault diagnostic system

l Hydraulic poilt control

Singer bar operation(one bar control lifting dumping bucket and draw in bucket function)

l Double road hydraulic brake

l Vehicle’s terminal system (including GPS positioning, real time monitoring ,machine info)

Note:Due?to?technical?innovations,?above all are?for reference only,all information subject to finnal confirmation!
